Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Nickel-plating
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320
This type of support for the MT4 intermediate hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

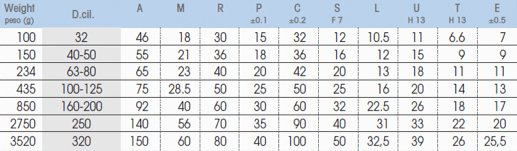

Data sheet
Technical Specifications: the intermediate hinge support can be sold in two different variants
- US58 | ASTM A-105 STEEL | Single intermediate hinge support
- CPUS58 | ASTM A-105 STEEL | Pair of intermediate hinge supports
Bushings: Sintered bronze – Premix PMX 552 bronze
Field of use: the MT4 intermediate hinge support is used for mounting ISO pneumatic cylinders/pneumatic actuators and must be mounted to support the intermediate hinges on the central part of the cylinder.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation: the MT4 intermediate hinge support can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
