Square Joint Cetop RP107P

Code ordering

US57 / diam. - Aluminium

Square Joint Cetop RP107P


Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250

This type of RP107P AB7 square joint is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Square Joint Cetop RP107P - Product structure

Data sheet

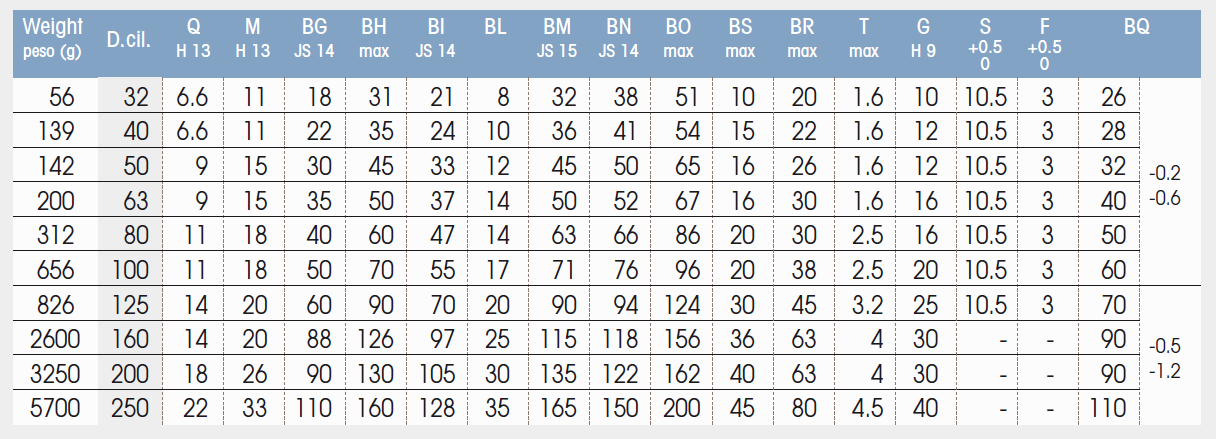

Square Joint Cetop RP107P - Data sheet

Technical Specifications: RP107P AB7 square joint is sold with the following article

  • US57 – without bushings (bushings are available upon specific request but will bill processed as a special part)

Field of use: the RP107P AB7 square joint is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder.
The RP107P AB7 square joint is fixed to the cylinder with 4 screws and works in combination with our MP2 rear female hinge (see our article 0003 or 0050). The steel pin (article 0007, fixed with 2 seegers) connects the AB7 and MP2 parts, making standard application perfect.

Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 15552 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.

Customisation: the RP107P AB7 square joint can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components (bushings), packaging.
