Square Joint CETOP RP107P

Code ordering

USIN05 / diam. - Stainless steel

Square Joint CETOP RP107P


Material: STAINLESS steel (AISI 316)
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125

This type of RP107P AB7 square joint is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Square joint CETOP RP107P Stainless Steel - Product structure

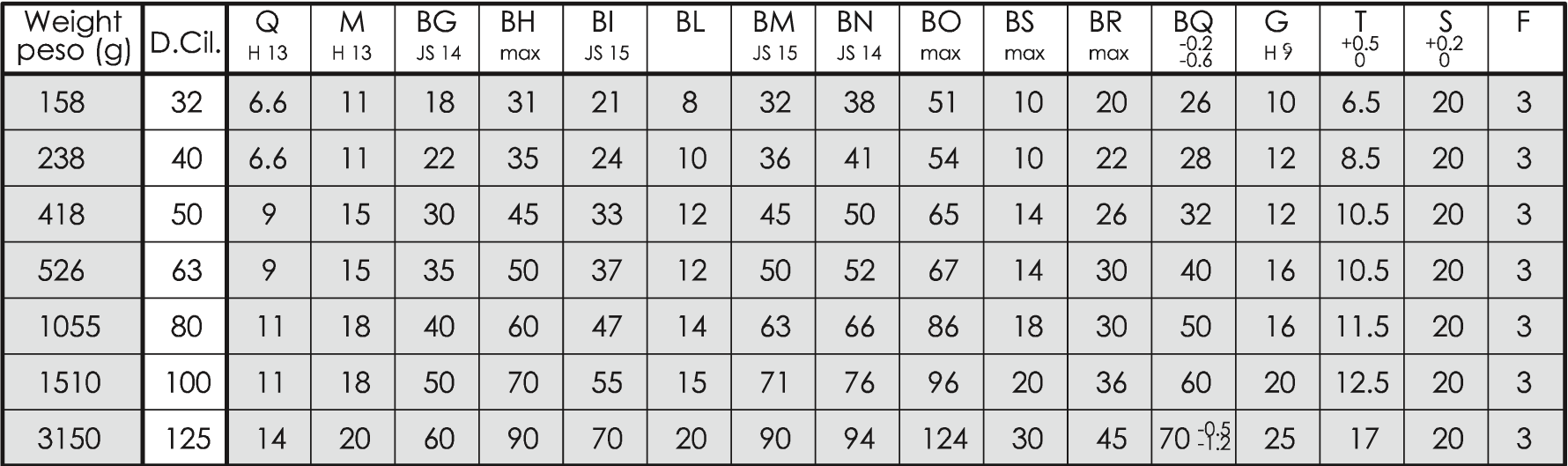

Data sheet

Square joint CETOP RP107P Stainless Steel - Data sheet

Technical Specifications: the RP107P AB7 square joint can be sold in two different variants

  • USIN05     AISI 316 STEEL
  • US05    ASTM A-105 STEEL

Field of use: the RP107P AB7 square joint is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder.
The RP107P AB7 square joint is fixed to the cylinder with 4 screws and works in combination with our MP2 rear female hinge (see our article IN17). The steel pin (article IN07, fixed with 2 seegers) connects the AB7 and MP2 parts, making standard application perfect.

Advantages: the use of STAINLESS steel ensures that the application is solid and resistant. INOX AISI 316 stainless steel protects the part against potential corrosion in the event of use in harsh environments and makes it perfect for use in the food industry.

Customisation: the RP107P AB7 square joint can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components (bushings), packaging.
