Square Joint Cetop RP107p


Code ordering

US05 / diam. - Steel

Square Joint Cetop RP107p

Search

Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125

This type of RP107P AB7 square joint is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

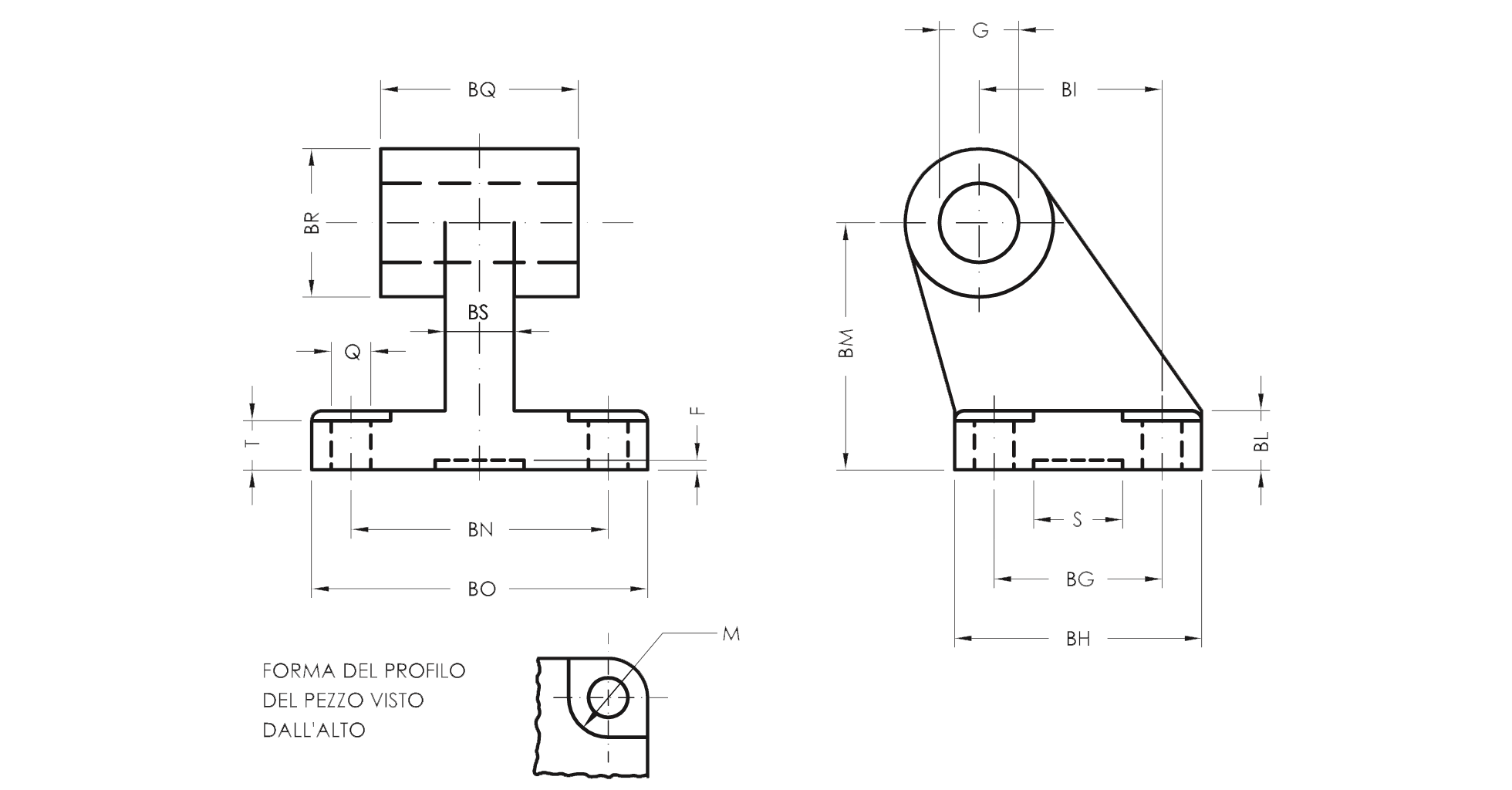

Square Joint Cetop Rp107p Steel - Product structure

Data sheet

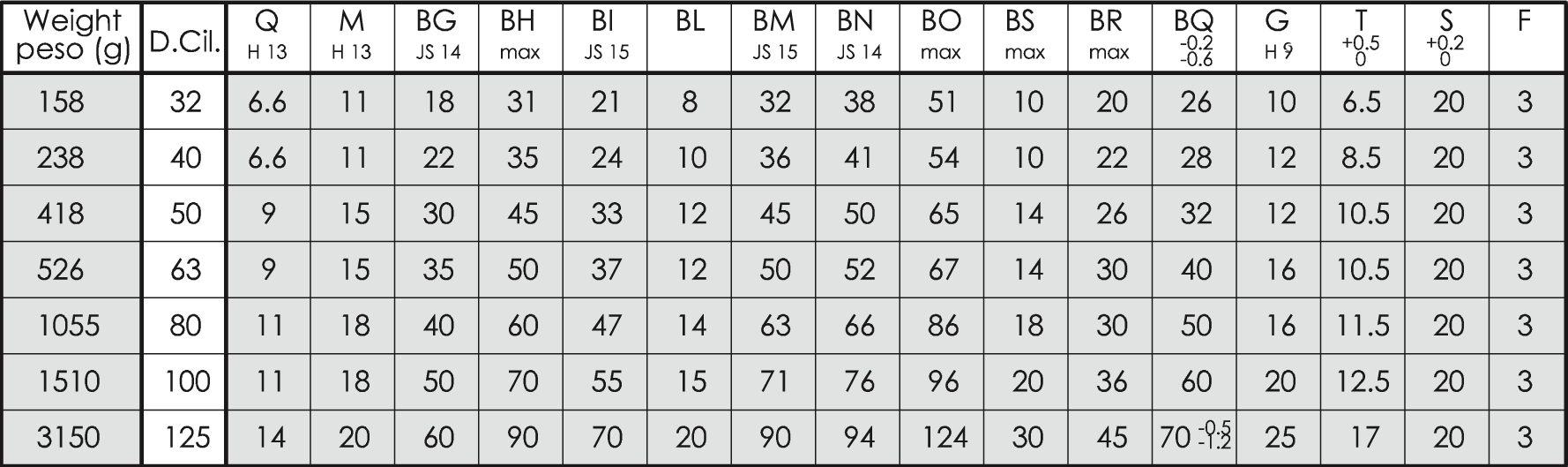

Square Joint Cetop Rp107p Steel - Data sheet

Technical Specifications: the RP107P AB7 square joint can be sold in two different variants

  • US05    ASTM A-105 STEEL
  • USIN05     AISI 316 STEEL

Field of use: the RP107P AB7 square joint is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder.
The RP107P AB7 square joint is fixed to the cylinder with 4 screws and works in combination with our MP2 rear female hinge (see our article 0017). The steel pin (article 0007, fixed with 2 seegers) connects the AB7 and MP2 parts, making standard application perfect.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: the RP107P AB7 square joint can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components (bushings), packaging.
