Pin for Female Hinge MP2

Code ordering

US07 / diam. - Aluminium

Pin for Female Hinge MP2


Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of pin is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

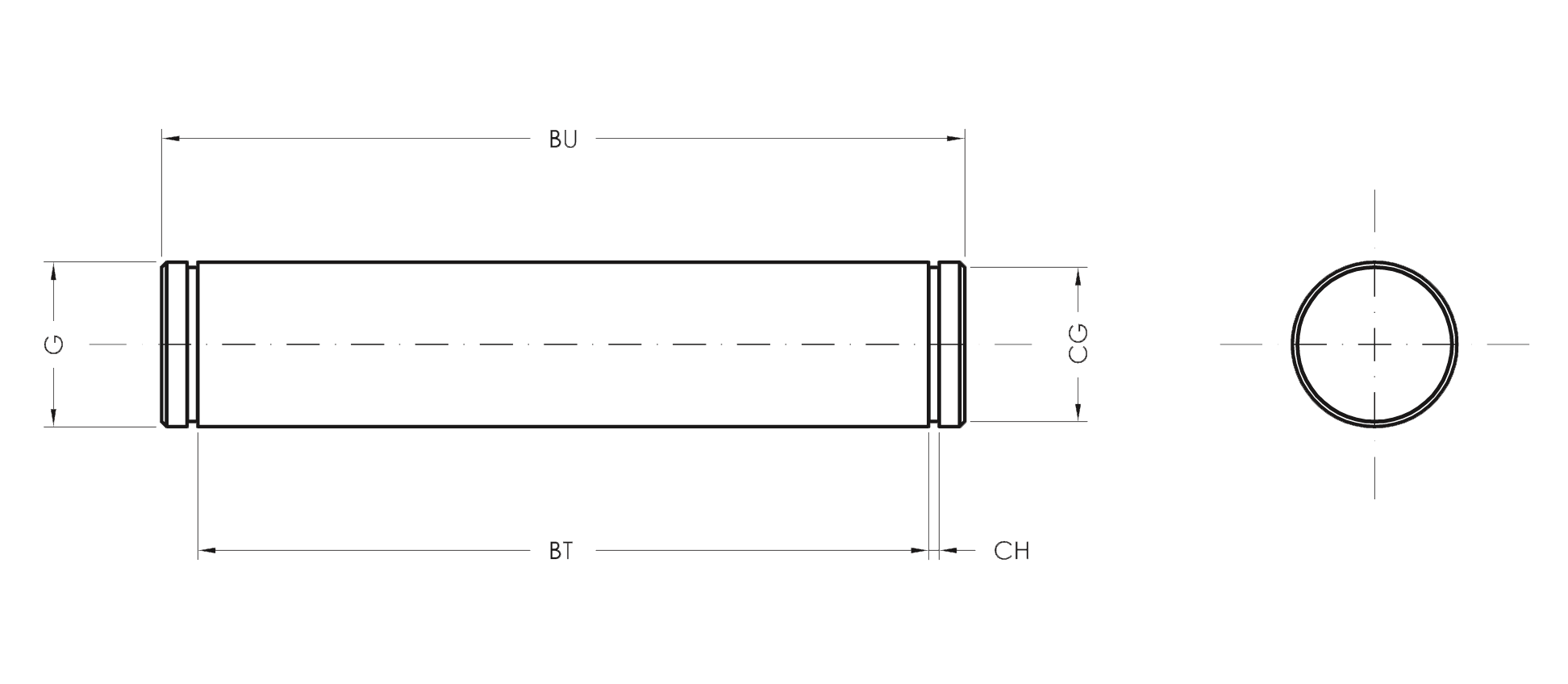

Product structure

Pin for Female Hinge MP2 - Product structure

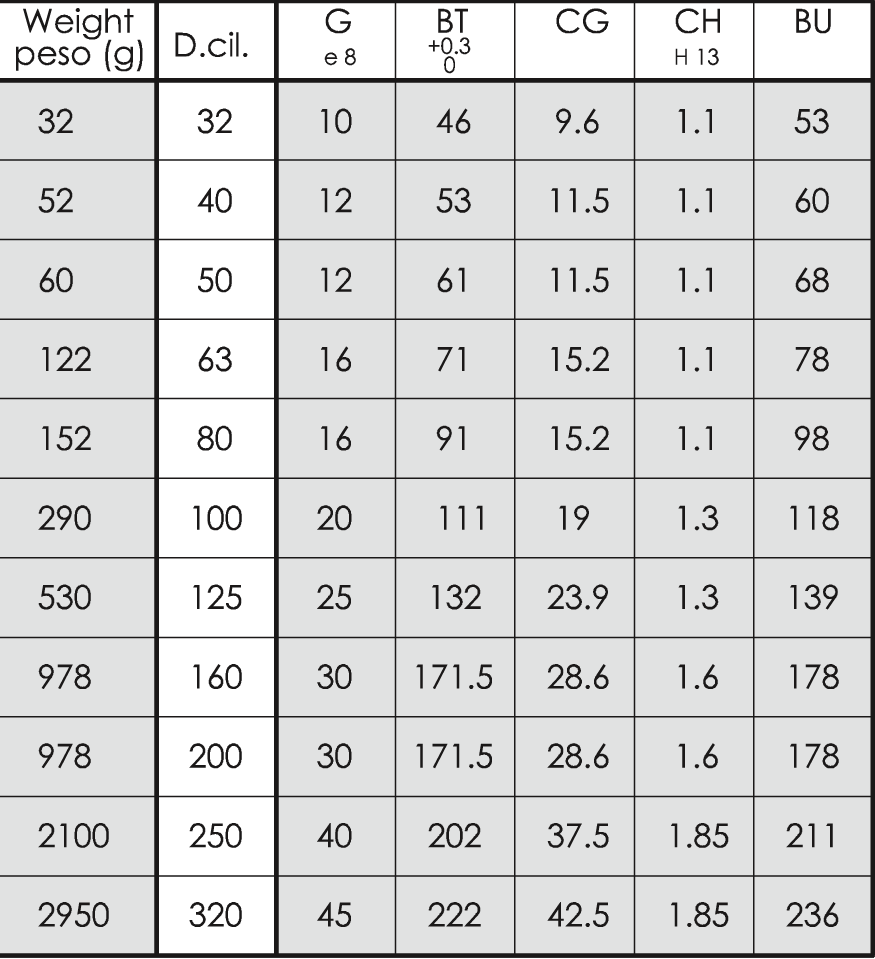

Data sheet

Pin for Female Hinge MP2 - Data sheet

Technical Specifications: the anti-rotation pin can be sold in two different variants

  • US07    ASTM A-105 STEEL
  • USIN07     AISI 316 STEEL

Field of use: The steel pin (article 0012, fixed with 1 seeger) connects the MP2 and MP4 parts, making standard application perfect.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: The steel pin can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
