Narrow Female Hinge for Square Joint with Articulated Head Din648K

Code ordering

US56 / diam. - Aluminium

Narrow Female Hinge for Square Joint with Articulated Head Din648K


Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of narrow rear female hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Narrow Female Hinge Din648K - Product structure

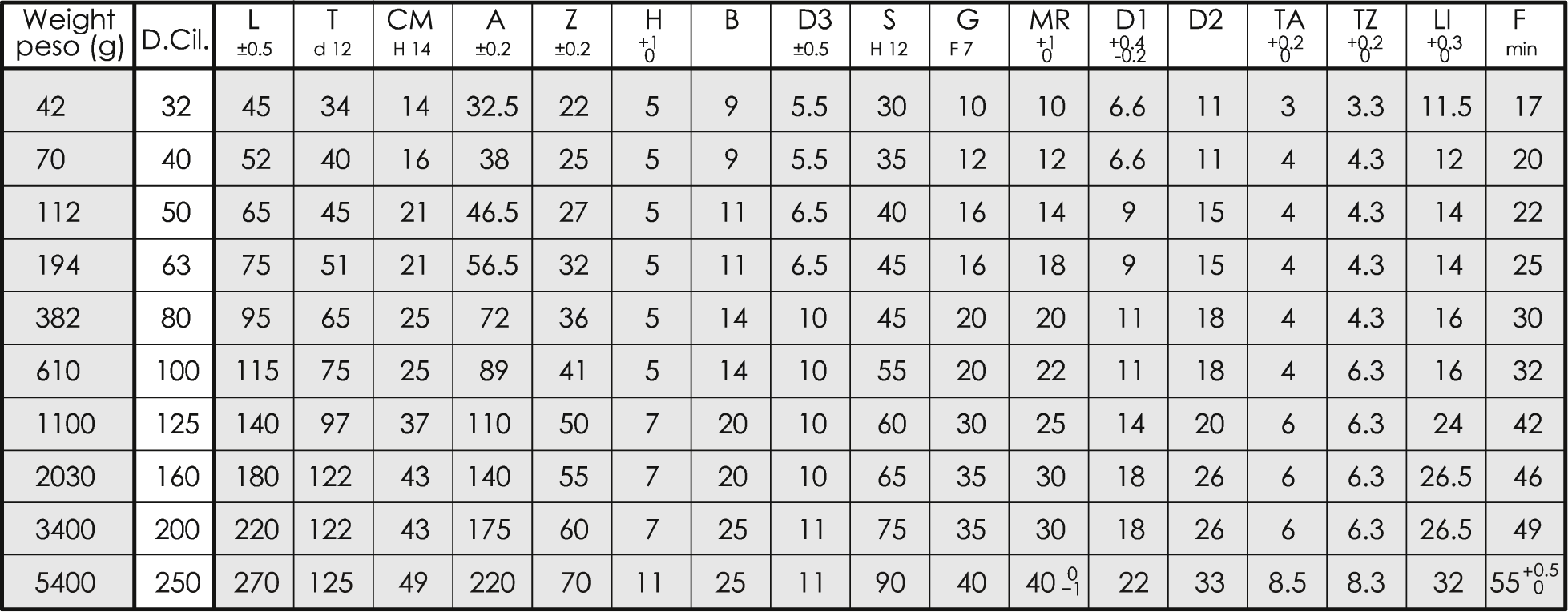

Data sheet

Narrow Female Hinge Din648K - Data sheet

Technical Specifications: the MP2 narrow rear female hinge can be sold with the following code:

  • US56    without bushings

Field of use: the MP2 narrow female hinge is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The MP2 narrow rear female hinge is fixed to the cylinder with 4 screws and works in combination with our MP4 narrow rear male hinge (see our article 0053). The steel pin (article 0012, fixed with 1 seeger) connects the MP2 and MP4 parts, making standard application perfect.

Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 15552 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.

Customisation: the MP2 narrow rear female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
