Male Hinge MP4 – Not Threaded And Without Bushes


Code ordering

NF04 / diam. - Aluminium

Male Hinge MP4 – Not Threaded And Without Bushes

Search

Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 1” ½ | 2” | 2” ½ | 3” ¼ | 4”

This type of MP4 non-threaded rear male hinge without bushings is made in order to comply with the NFPA reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff. Measurements are in inches.

Product structure

Male Hinge MP4 – Not Threaded And Without Bushes - Product structure

Data sheet

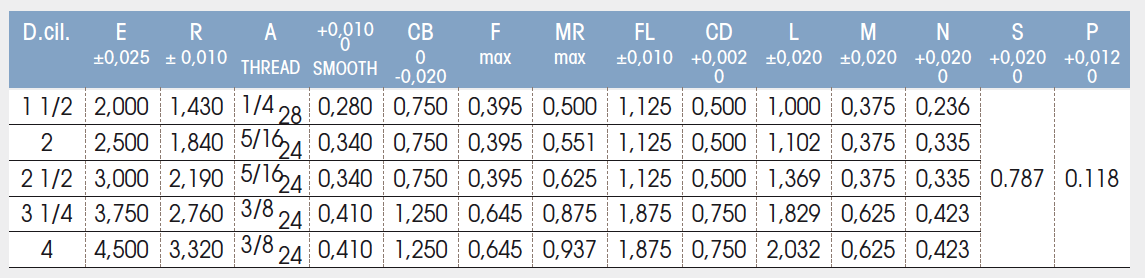

Male Hinge MP4 – Not Threaded And Without Bushes - Data sheet

Technical Specifications: the MP4 male hinge can be sold in four different variants

  • NF04 | Non-threaded without bushings
  • NF04T | Threaded without bushings
  • NF30 | Non-threaded with bushings | Bushings: PTFE sintered steel
  • NF30T | Threaded with bushings | Bushings: PTFE sintered steel

Field of use: the MP4 non-threaded rear male hinge without bushings is used for pneumatic cylinder/actuator assembly that meet American NFPA standards. Intended to be mounted on the rear end of the cylinder. The MP4 non-threaded rear male hinge without bushings is mounted on the cylinder with 4 screws and works in combination with our MP2 rear female hinge (see our article NF03 or NF50). The steel pin (article NF07, fixed with 2 seegers) connects the MP2 and MP4 parts, making standard application perfect.

Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to NFPA standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.

Customisation: the MP4 non-threaded rear male hinge without bushings can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
