Low Rise Pedestal

Code ordering

US52 / diam. - Steel

Low Rise Pedestal


Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Nickel-plating
Available in the following sizes: 25 – 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200

This type of low-rise pedestal is made in order to comply with the CNOMO reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Product structure - Low Rise Pedestal

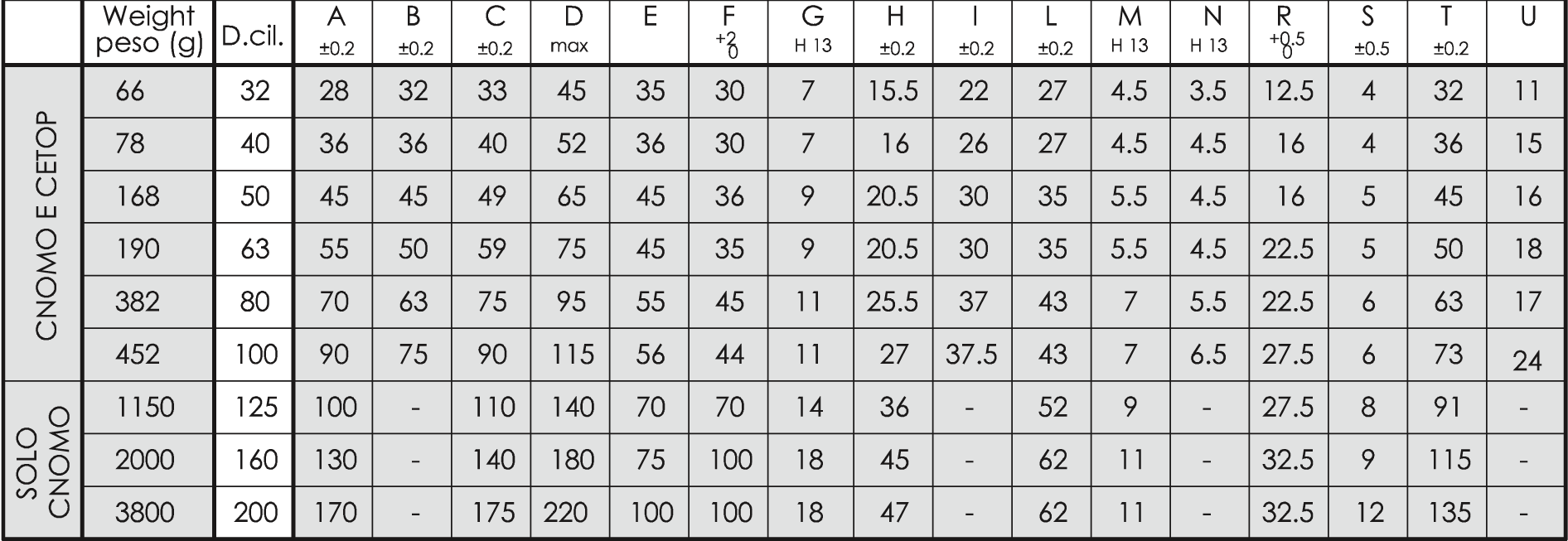

Data sheet

Data sheet - Low Rise Pedestal

Technical Specifications: the CNOMO low-rise pedestal can be sold in two different variants

  • US52    Single low-rise pedestal
  • CPUS52 Pair of low-rise pedestals

Field of use: the CNOMO low-rise pedestal is used for CNOMO cylinder/actuator assembly. It is intended to be mounted on both the front and rear of the cylinder. The MS1 low-rise pedestal is fixed to the cylinder with 4 screws. From d.25 to d.100 these CNOMO low-rise pedestals can also be used for the CETOP ISO 6432 standard.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: the CNOMO low-rise pedestal can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
