Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 12-16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100
This type of low-rise pedestal for compact cylinders is made in order to comply with the ISO 21287 reference standard for cylinders. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

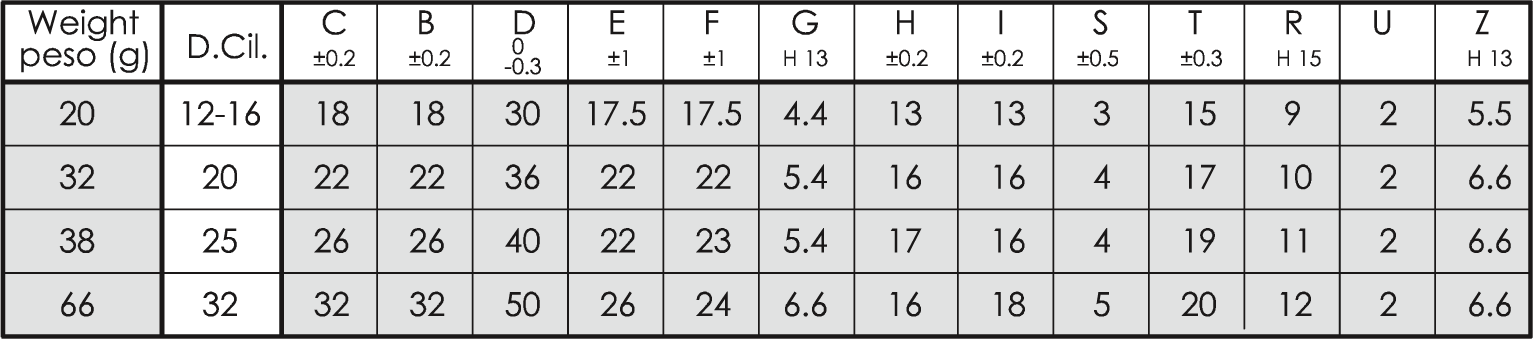

Data sheet
Technical Specifications: the MS1 low-rise pedestal can be sold in two different variants
- US59 | Single low-rise pedestal
- CPUS59 | Pair of low-rise pedestals
Field of use: the low-rise pedestal for compact cylinders is used for ISO 21287 compact cylinder/actuator assembly. It is intended to be mounted on both the front and rear of the cylinder. The low-rise pedestal is fixed to compact cylinders with 4 screws.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation: the low-rise pedestal for compact cylinders can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
