Intermediate Shaped Hinge

Code ordering

US01 / diam. - Steel

Intermediate Shaped Hinge


Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200

This shaped round intermediate hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Intermediate Shaped Hinge - Product structure

Data sheet

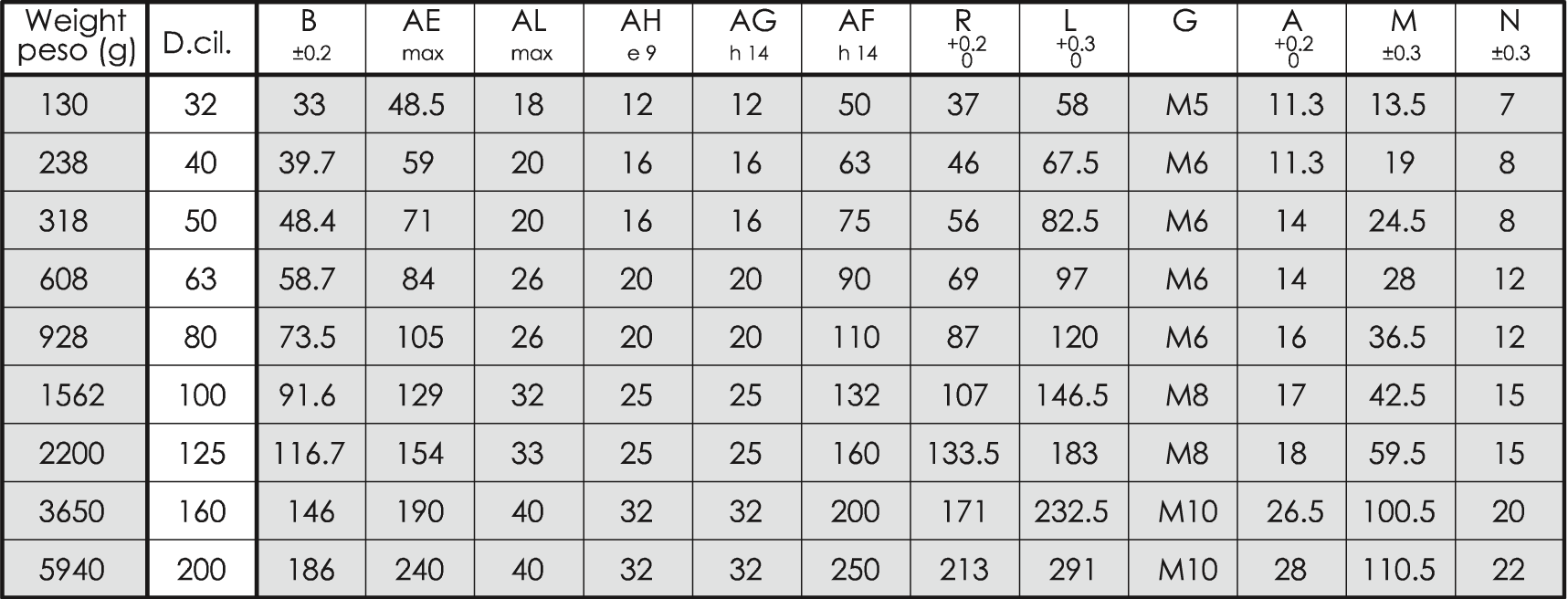

Intermediate Shaped Hinge - Data sheet

Technical Specifications: the ISO MT4 intermediate hinge can be sold with the following code:

  • US01 ASTM A-105 STEEL Standard ISO 15552 – MT4 (with 4 threaded holes)

Field of use: the shaped round intermediate hinge is used for mounting ISO pneumatic cylinders/pneumatic actuators and must be mounted on the central part of the cylinder using threaded rods or bolts.
The round adjustable shaped intermediate hinge is fixed to the cylinder tube with 4 cap screws inserted in the side part of the intermediate hinge. The shaped intermediate hinge can work in combination with our 0058 intermediate hinge supports.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation the ISO MT4 shaped round intermediate hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
