Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100
This type of CNOMO threaded round intermediate hinge is made in order to comply with the CNOMO reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

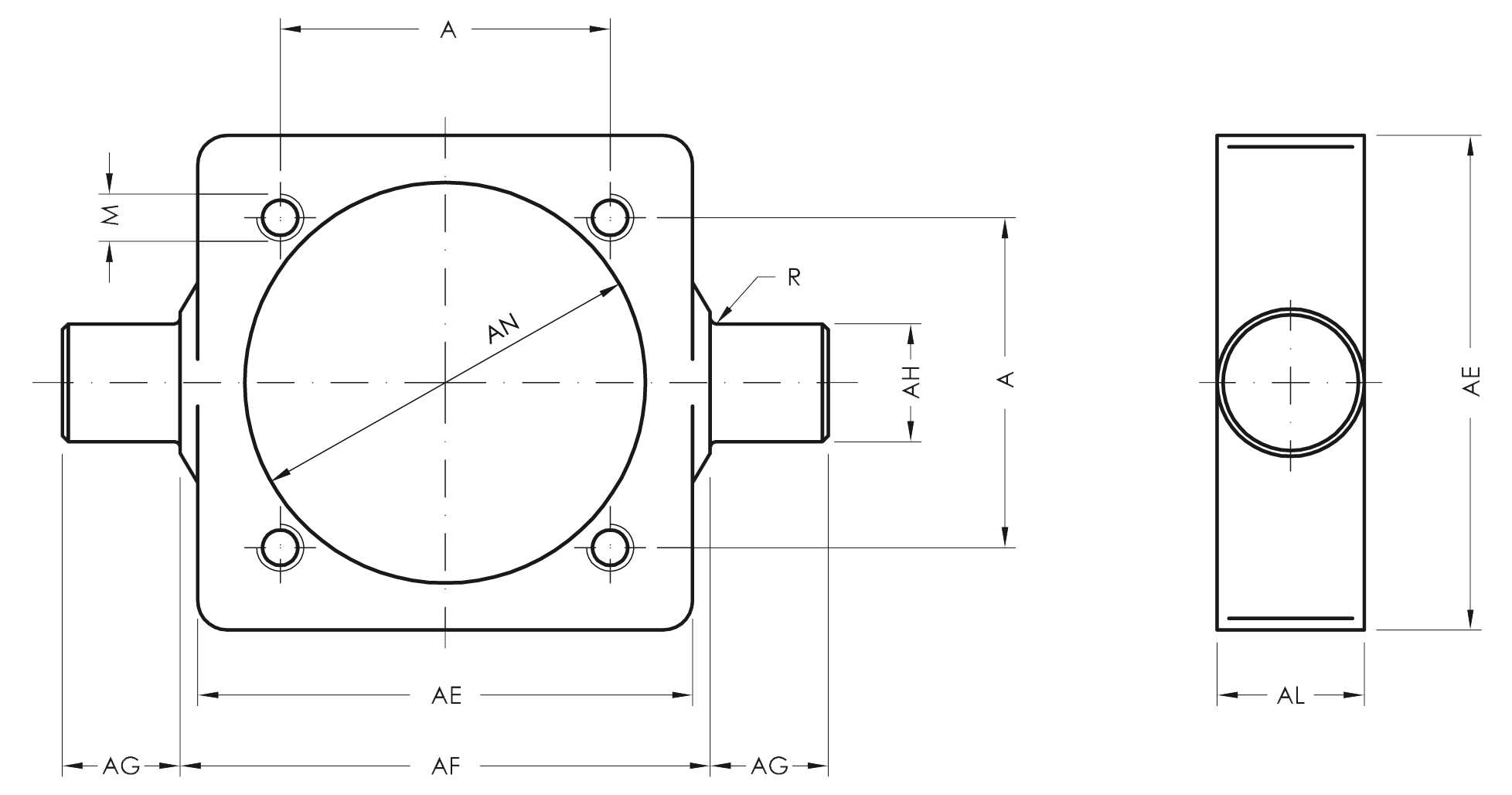

Product structure
Data sheet
Technical Specifications: the CNOMO intermediate hinge can be sold in two different variants
- US10 | ASTM A-105 STEEL Standard ISO 15552 – MT4 | with 4 threaded holes
- US10reg | ASTM A-105 STEEL | with 4 through holes on the flat part and 4 threaded holes on the sides
Field of use: the CNOMO threaded round intermediate hinge is used for mounting CNOMO pneumatic cylinders/CNOMO pneumatic actuators and must be mounted on the central part of the cylinder using threaded rods or bolts. The ISO MT4 threaded round adjustable intermediate hinge (0009reg) is fixed to the cylinder tube with 4 cap screws inserted in the side part of the intermediate hinge. The intermediate hinge can work in combination with our 0058 intermediate hinge supports. Over d.100 are interchangeable with ISO 15552 threaded round hinges
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation ISO MT4 threaded round intermediate hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
