Intermediate Hinge MT4

Code ordering

US09 / diam. - Steel

Intermediate Hinge MT4


Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of ISO MT4 threaded round intermediate hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

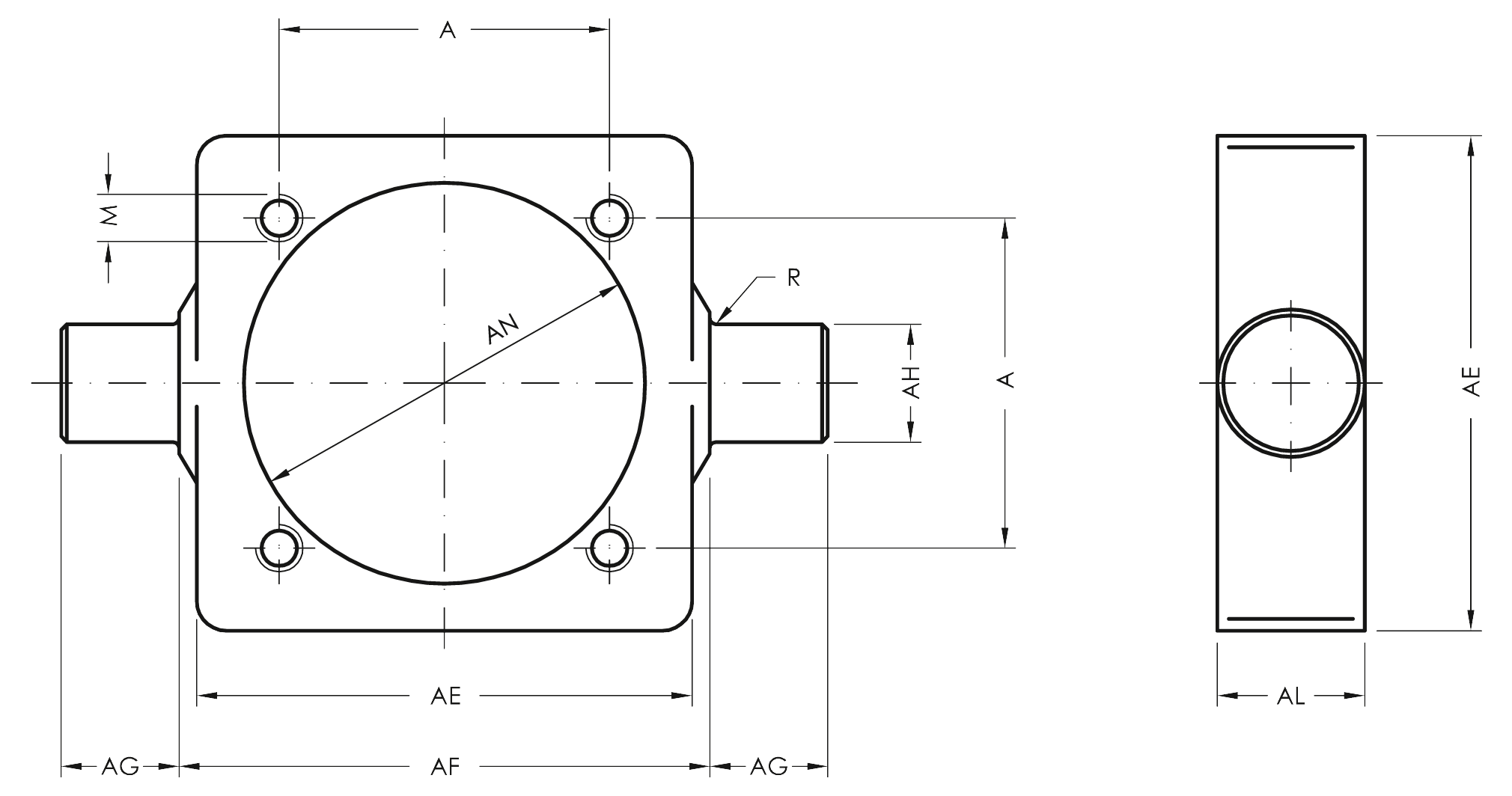

Product structure

Intermediate Hinge MT4 - Product structure

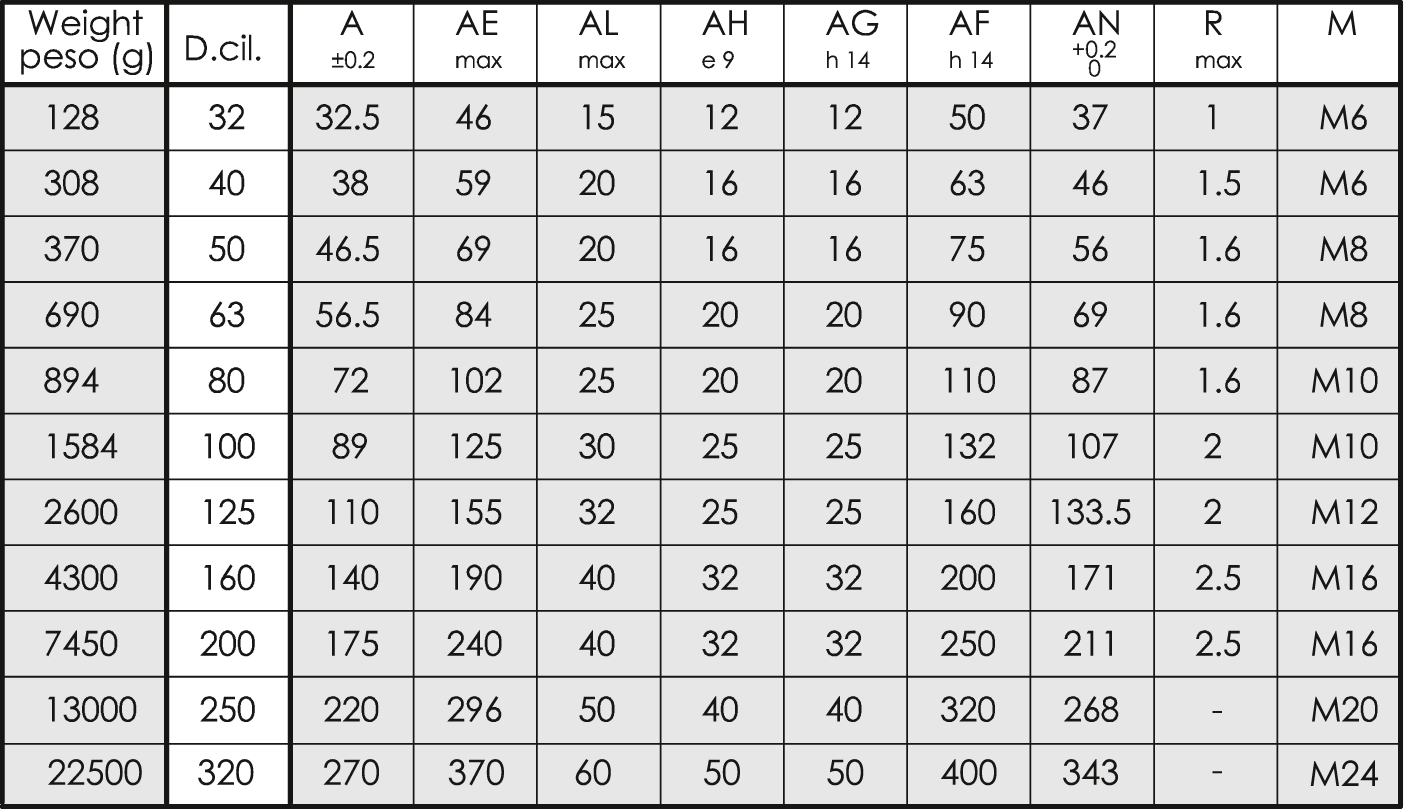

Data sheet

Intermediate Hinge MT4 - Data sheet

Technical Specifications: the ISO MT4 intermediate hinge can be sold in two different variants

  • US09 | ASTM A-105 STEEL | With 4 threaded holes
  • USIN09 |INOX 316 STEEL | With 4 threaded holes

Field of use: the ISO MT4 threaded round intermediate hinge is used for mounting ISO pneumatic cylinders/pneumatic actuators and must be mounted on the central part of the cylinder using threaded rods or bolts. The ISO MT4 threaded round adjustable intermediate hinge is fixed to the cylinder tube with 4 cap screws inserted in the side part of the intermediate hinge. The intermediate hinge can work in combination with our 0058 intermediate hinge supports. (link to article sheet).

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation ISO MT4 threaded round intermediate hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
