Material: STAINLESS steel (AISI 316)
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100
This type of ISO MT4 threaded round intermediate hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

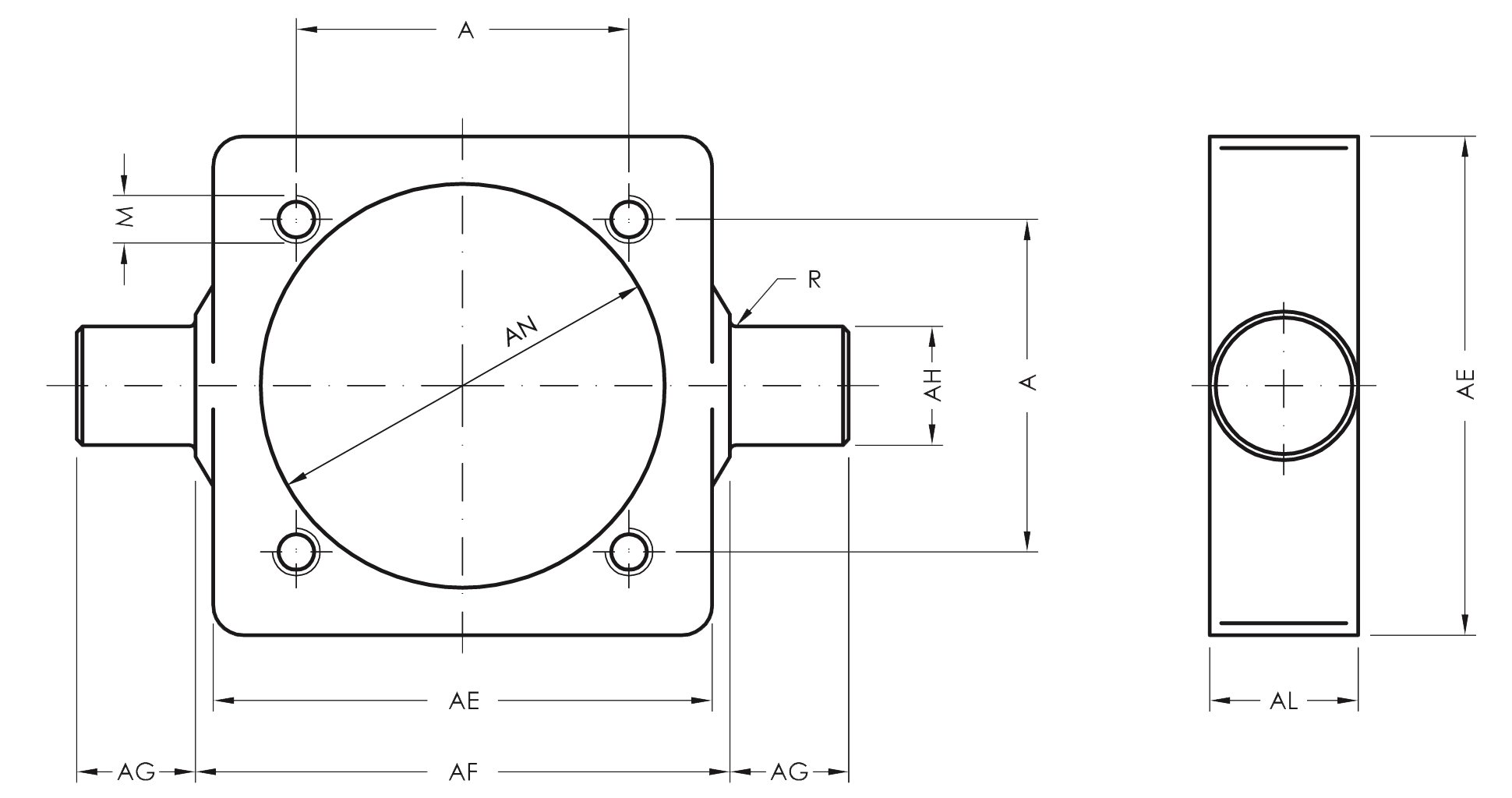

Product structure

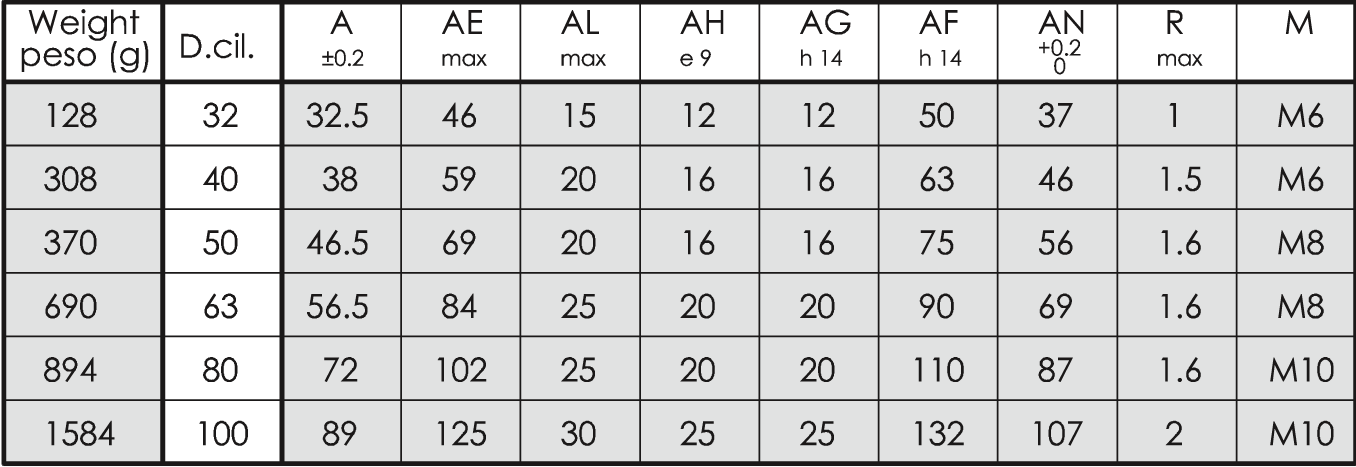

Data sheet
Technical Specifications: the ISO MT4 intermediate hinge can be sold in two different variants
- USIN09 INOX 316 STEEL Standard ISO 15552 – MT4 (with 4 threaded holes)
- US09 ASTM A-105 STEEL Standard ISO 15552 – MT4 (with 4 threaded holes)
Field of use: the ISO MT4 threaded round intermediate hinge is used for mounting ISO pneumatic cylinders/pneumatic actuators and must be mounted on the central part of the cylinder using threaded rods or bolts. The ISO MT4 threaded round adjustable intermediate hinge is fixed to the cylinder tube with 4 cap screws inserted in the side part of the intermediate hinge.
Advantages: the use of STAINLESS steel ensures that the application is solid and resistant. INOX AISI 316 stainless steel protects the part against potential corrosion in the event of use in harsh environments and makes it perfect for use in the food industry.
Customisation ISO MT4 threaded round intermediate hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
