Intermediate Adjustable Hinge


Code ordering

US10reg / diam. - Steel

Intermediate Adjustable Hinge

Search

Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100

This type of CNOMO round adjustable intermediate hinge is made in order to comply with the CNOMO reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Product structure - Intermediate Adjustable Hinge

Data sheet

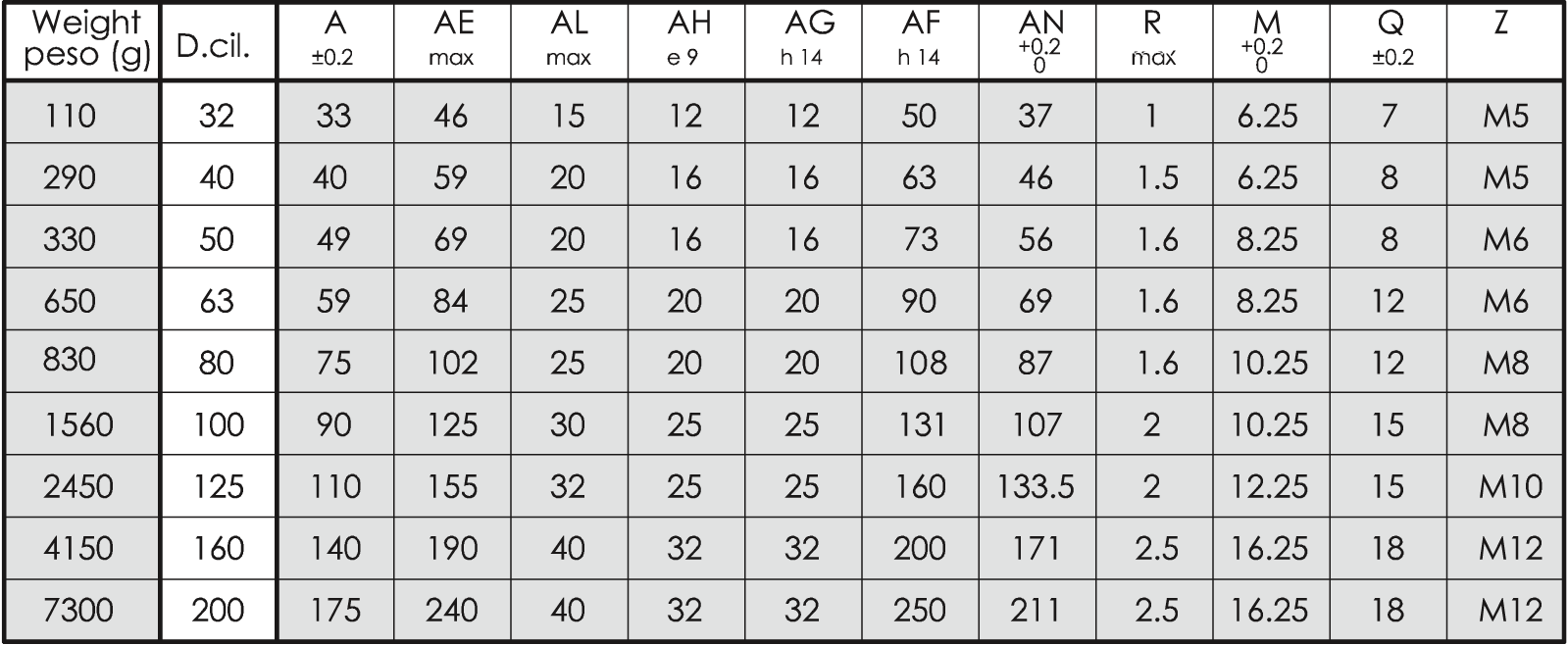

Data sheet - Intermediate Adjustable Hinge

Technical Specifications: the CNOMO round adjustable intermediate hinge can be sold in two different variants

  • US10reg | ASTM A-105 STEEL | with 4 through holes on the flat part and 4 threaded holes on the sides
  • US10 | ASTM A-105 STEEL Standard ISO 15552 – MT4 | with 4 threaded holes

Field of use: the ISO MT4 round adjustable intermediate hinge is used for mounting CNOMO pneumatic cylinders/CNOMO pneumatic actuators and must be mounted on the central part of the cylinder using threaded rods or bolts. The CNOMO round adjustable intermediate hinge (00010reg) is fixed to the cylinder tube with 4 cap screws inserted in the side part of the intermediate hinge. The round adjustable intermediate hinge can work in combination with our 0058 intermediate hinge supports. Over d.100 are interchangeable with ISO 15552 adjustable round hinges

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation the ISO MT4 round adjustable intermediate hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
