Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200
This type of high-rise pedestal is made in order to comply with the CETOP reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

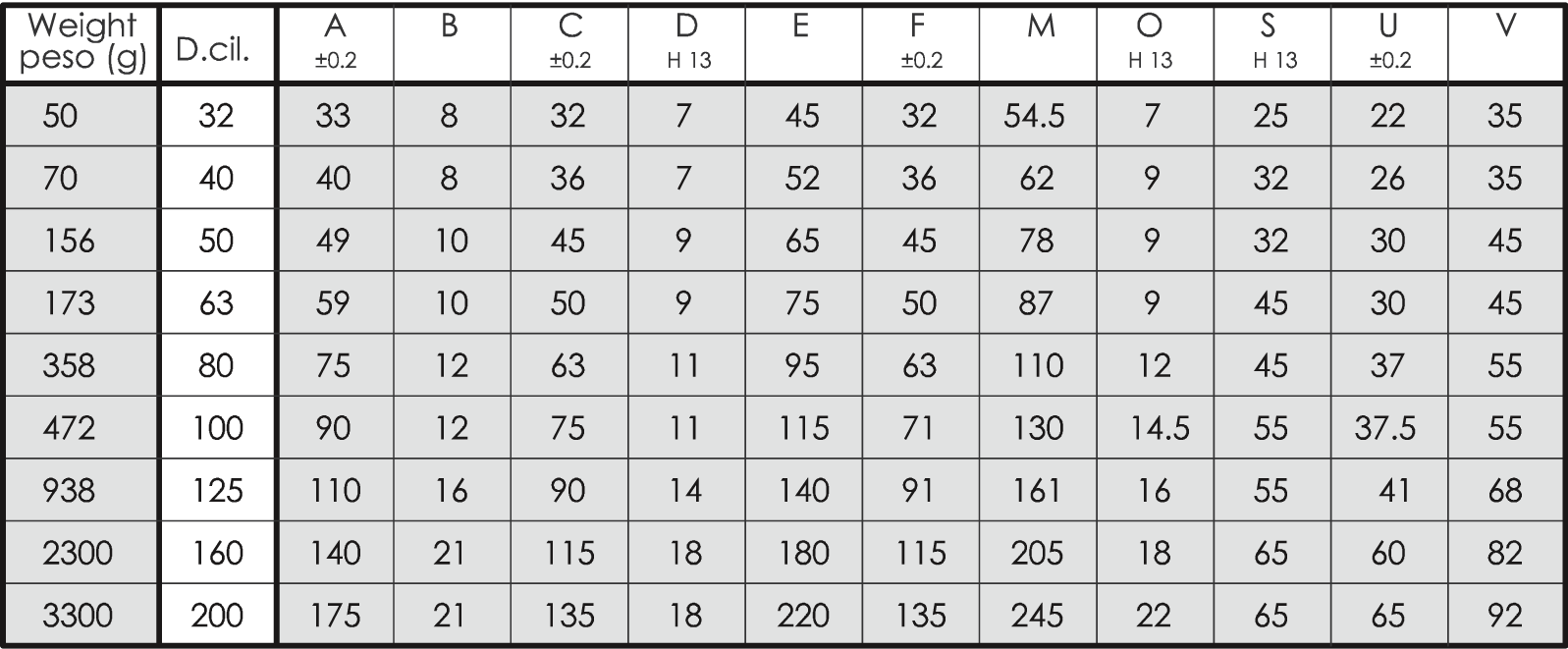

Data sheet
Technical Specifications: CETOP high-rise pedestal is sold with the following article
- US42 – without bushings
Field of use: the high-rise pedestal is used for CETOP pneumatic cylinder/actuator assembly. It is intended to be mounted on both the front and rear of the cylinder. The high-rise pedestal is fixed to the cylinder with 4 screws.
Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to CETOP standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.
Customisation: the CETOP manifold block can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
