Front Female Hinge MP7

Code ordering

US02 / diam. - Steel

Front Female Hinge MP7


Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of front female hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

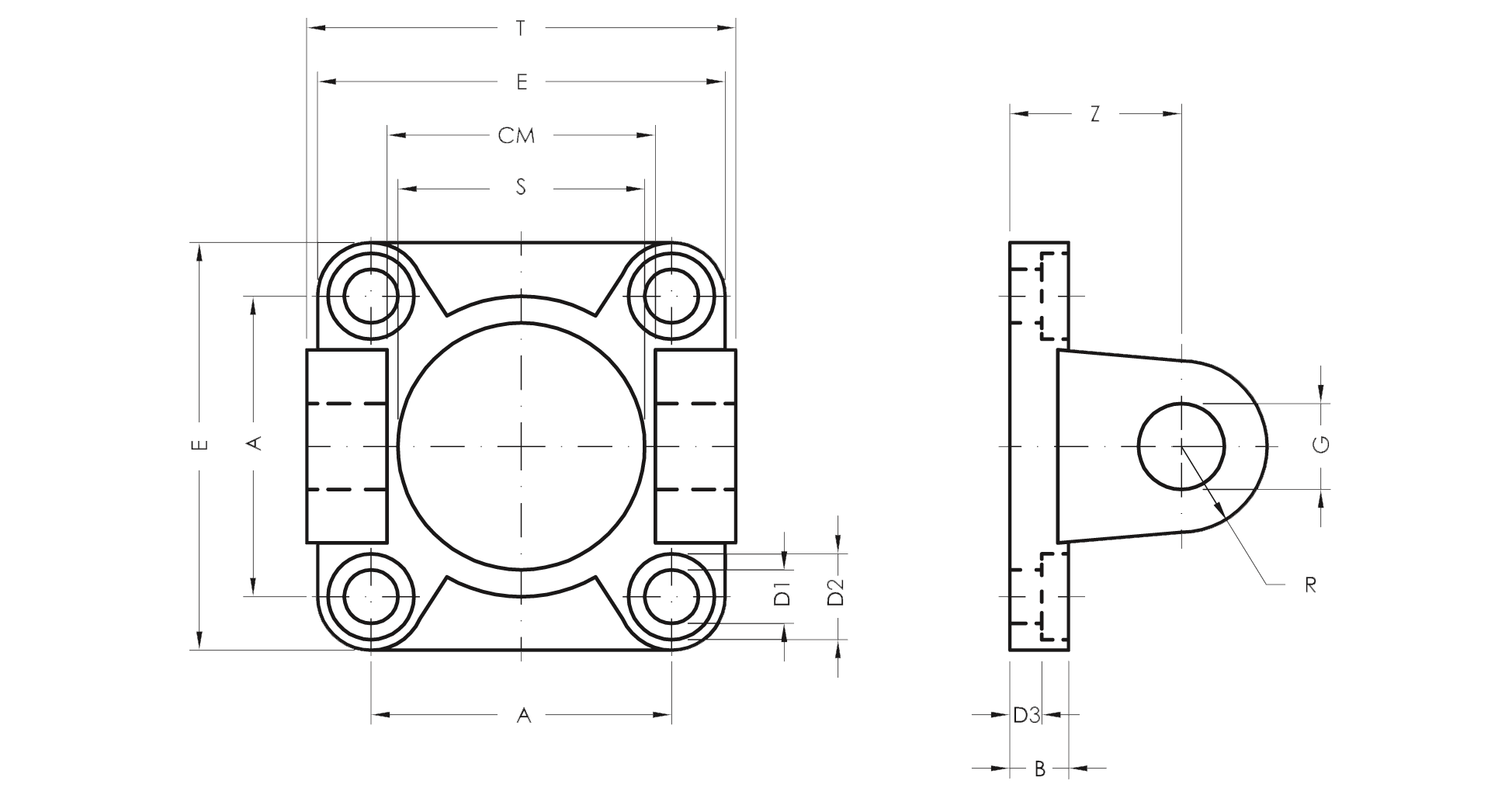

Product structure

Front Female Hinge Mp7 - Product structure

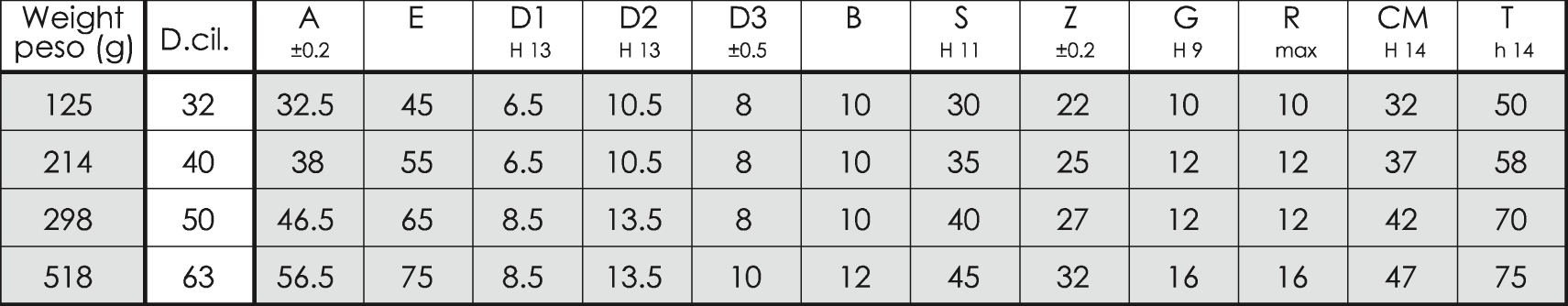

Data sheet

Front Female Hinge Mp7 - Data sheet

Technical Specifications: The female hinge can be sold with the following code:

  • US02    ASTM A-105 STEEL

Field of use: the MP2 front female hinge is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted at the front of the cylinder. The rear MP2 front female hinge is fixed to the cylinder with 4 screws.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: the MP2 front female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
