Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 8-10 | 12-16 | 20-25
This type of flange for microcylinders is made in order to comply with the ISO 6432 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

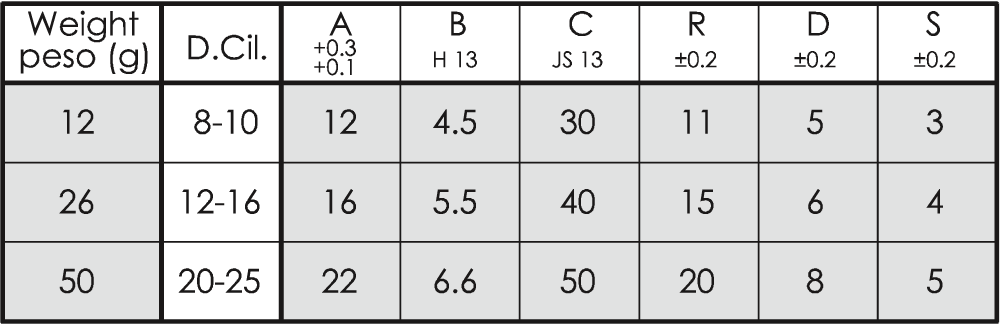

Data sheet
Technical Specifications: the flange for microcylinders can be sold in two different variants
- US14 ASTM A-105 STEEL
- USIN14 AISI 304 STEEL
Field of use: the flange is used for ISO 6432 pneumatic microcylinders/actuator assembly. It is intended to be mounted on both the front and rear of the cylinder. It must remain in contact with the rear and front hinges. The ISO MF1/MF2 flange is fixed to the head and tail of the cylinder with 2 through holes for your cylinder rods.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation: the ISO 6432 flange can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
