Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 8-10 | 12-16 | 20-25
This type of female hinge is made in order to comply with the ISO 6432 reference standard for MICROCYLINDERS. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

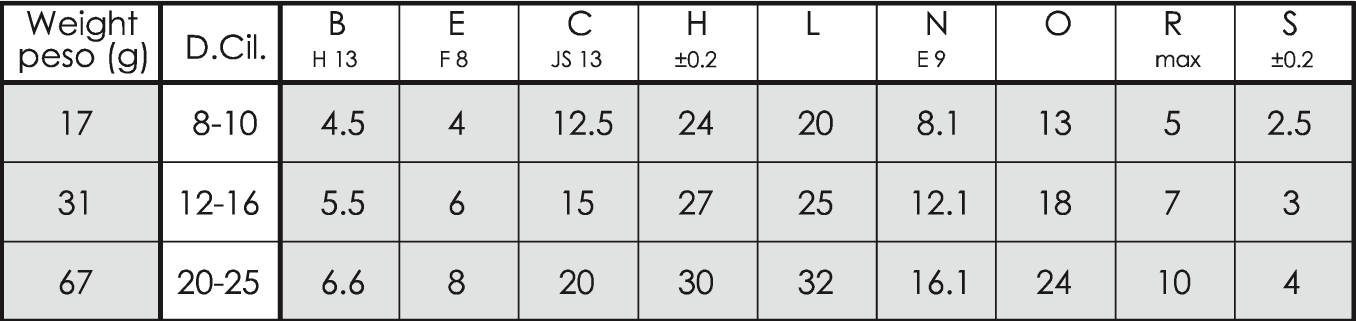

Data sheet
Technical Specifications: the female hinge can be sold in two different variants
- US16 ASTM A-105 STEEL | A-105 steel pin and two seegers always included
- USIN16 AISI 304 STEEL | AISI 304 steel pin and two STAINLESS steel seegers always included
Field of use: the female hinge is used for ISO 6432 pneumatic cylinder/actuator assembly for MICROCYLINDERS. It is intended to be mounted on the rear end of the microcylinder. The female hinge is mounted on the cylinder with 2 screws and a steel pin (article 0033, fixed with 2 seegers), making it perfect for standard application.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation: the rear female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
