Female hinge MP2

Code ordering

USIN17 / diam. - Stainless steel

Female hinge MP2


Material: STAINLESS steel (AISI 316)
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125

This type of rear female hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Female Hinge MP2 - Product structure

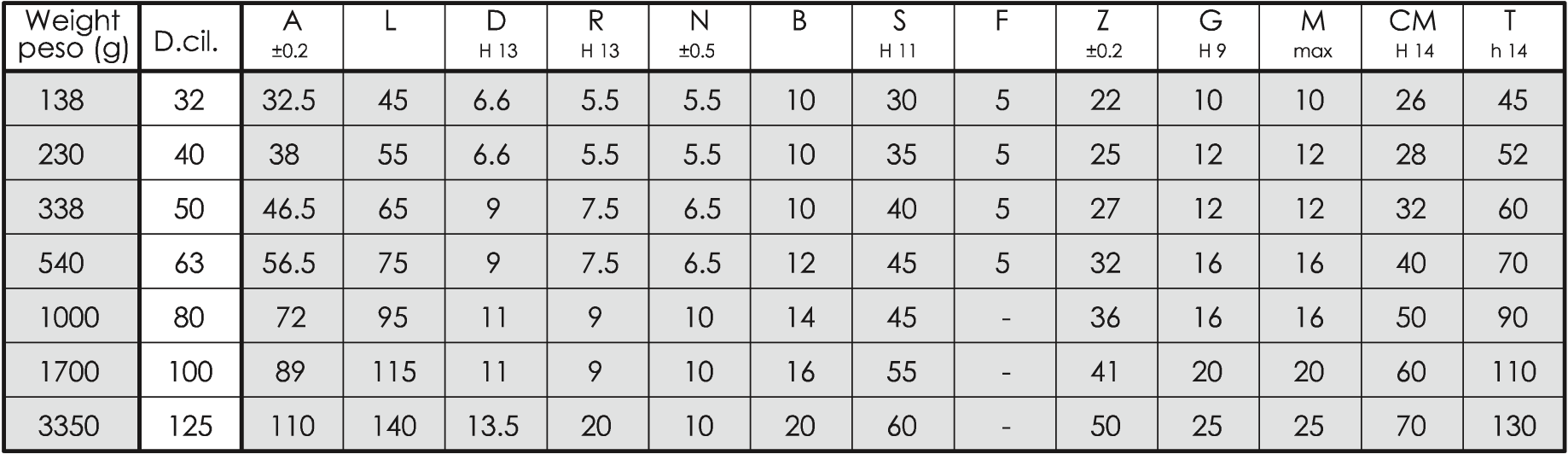

Data sheet

Female Hinge MP2 - Data sheet

Technical Specifications: the female hinge can be sold in two different variants

  • USIN17     AISI 316 STEEL
  • US17    ASTM A-105 STEEL

Field of use: the MP2 female hinge is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The MP2 female hinge is fixed to the cylinder with 4 screws and works in combination with our MP4 rear male hinge (see our article IN19). The steel pin (article IN07, fixed with 2 seegers) connects the MP2 and MP4 parts, making standard application perfect.

Advantages: the use of STAINLESS steel ensures that the application is solid and resistant. INOX AISI 316 stainless steel protects the part against potential corrosion in the event of use in harsh environments and makes it perfect for use in the food industry.

Customisation: the MP2 rear female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
