Female Hinge MP2

Code ordering

US03 / diam. - Aluminium

Female Hinge MP2


Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of front female hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

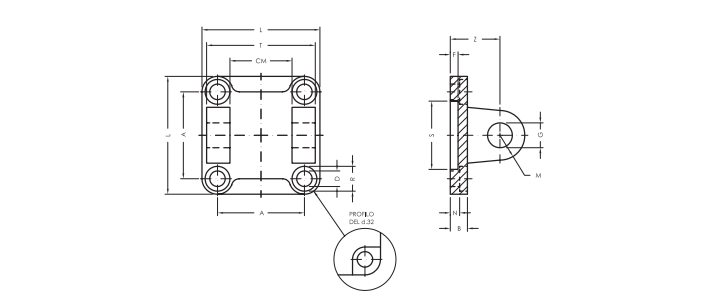

Female Hinge MP2 Alluminium - Product structure

Data sheet

Female Hinge MP2 Alluminium - Data sheet

Technical Specifications: the female hinge can be sold in two different variants

  • US03ant Without bushings
  • US50ant With Bushing | Bushings: PTFE sintered steel

Field of use: the MP2 front female hinge is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted at the front of the cylinder. The rear MP2 front female hinge is fixed to the cylinder with 4 screws.

Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 15552 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.

Customisation: the MP2 front female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
