Female Hinge


Code ordering

US37 / diam. - Aluminium

Female Hinge

Search

Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100

This type of rear female hinge is made in order to comply with the ISO 6431 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Product structure

Female hinge - Product structure

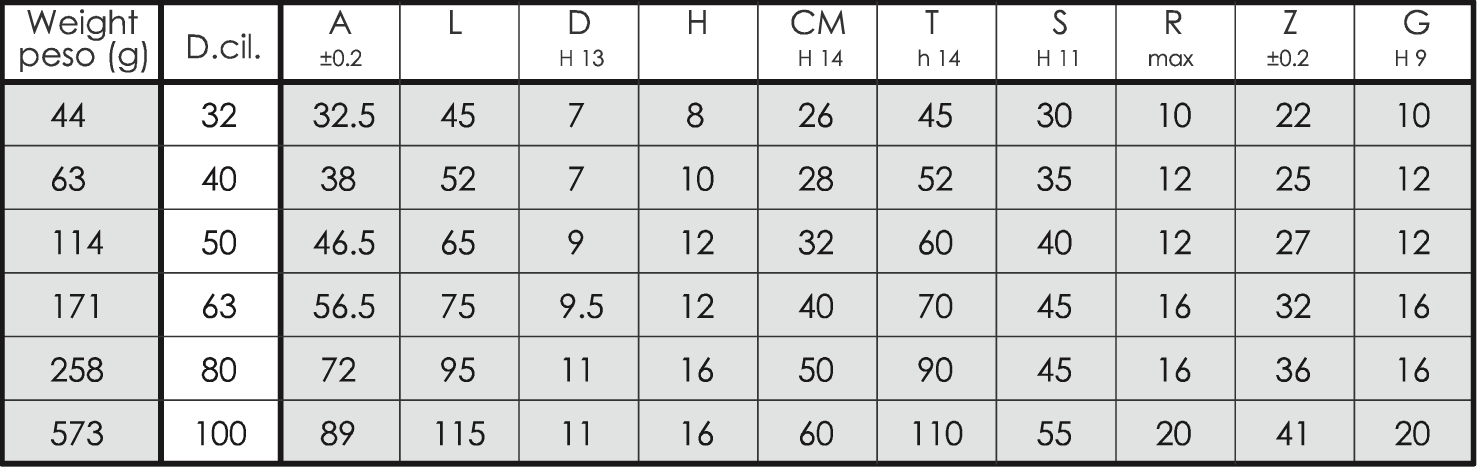

Data sheet

Female hinge - Data sheet

Technical Specifications: the female hinge can be sold in two different variants

  • US37     | Without bushings
  • US37ant | Tapped – Without bushings

Field of use: the female hinge is used for ISO 6431 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The female hinge is fixed to the cylinder with 4 screws and works in combination with our male hinge (see our article 0038).

Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 6431 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.

Customisation: the ISO 6431 female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
