Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200

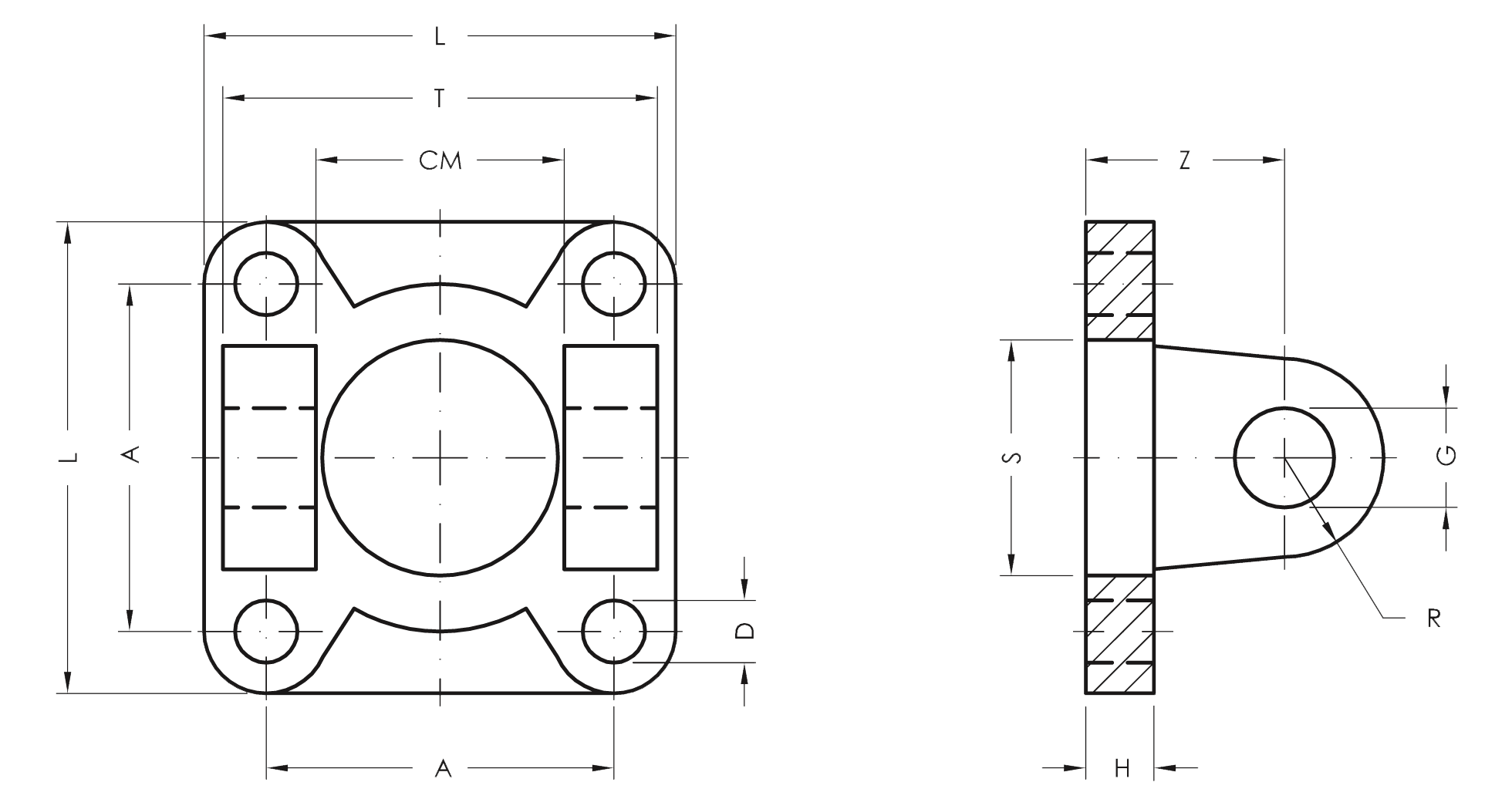

This type of rear female hinge is made in order to comply with the CETOP reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

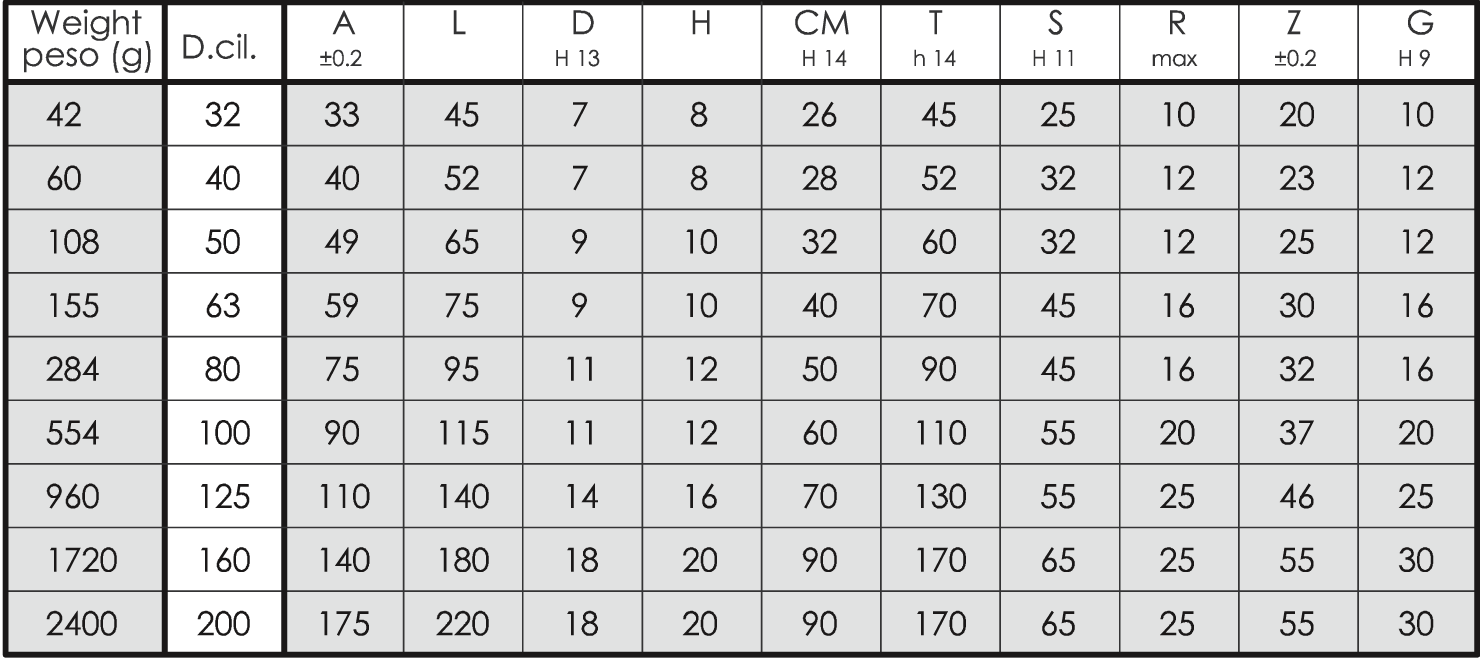

Technical Specifications: the female hinge is sold with the following code:
- US40 Without Bushings
Field of use: the CETOP female hinge is used for CETOP cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The CETOP female hinge is fixed to the cylinder with 4 screws and works in combination with our CETOP male hinge (see our article 0041). The steel pin (article 0007, fixed with 2 seegers) connects the two CETOP hinges, making standard application perfect.
Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to CETOP standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.
Customisation: the CETOP female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
